Tools For MC4® / MC4® Evo 2 connectors, Knipex 97 49 66 3 ( 9749663 )

Applications in photovoltaic systems

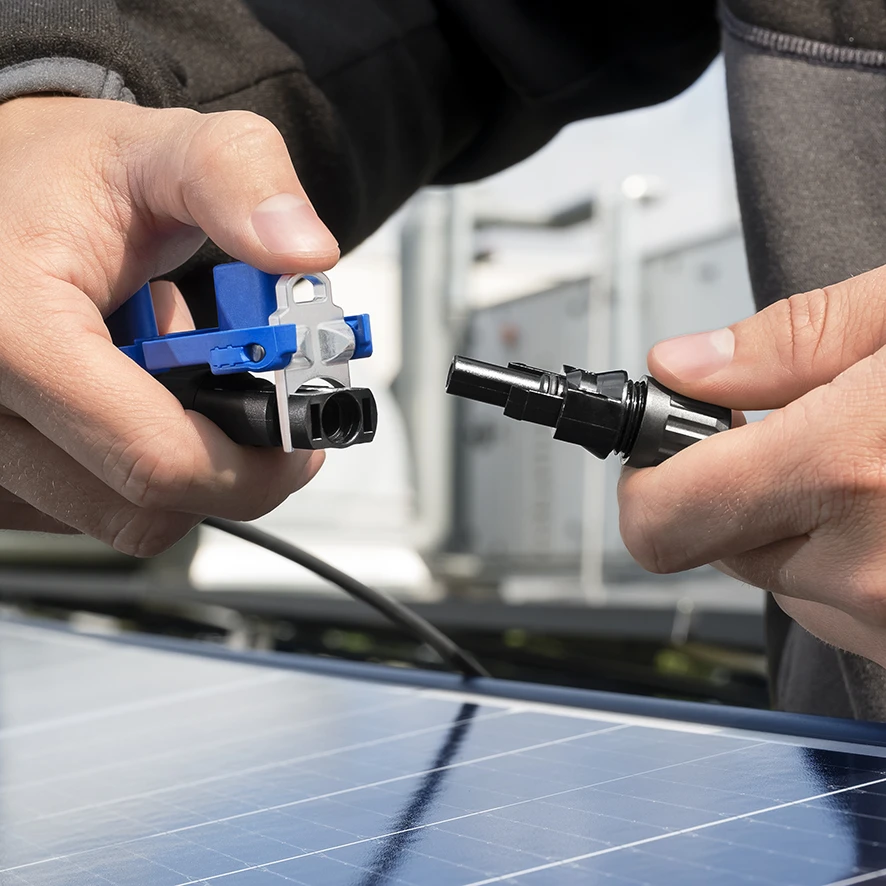

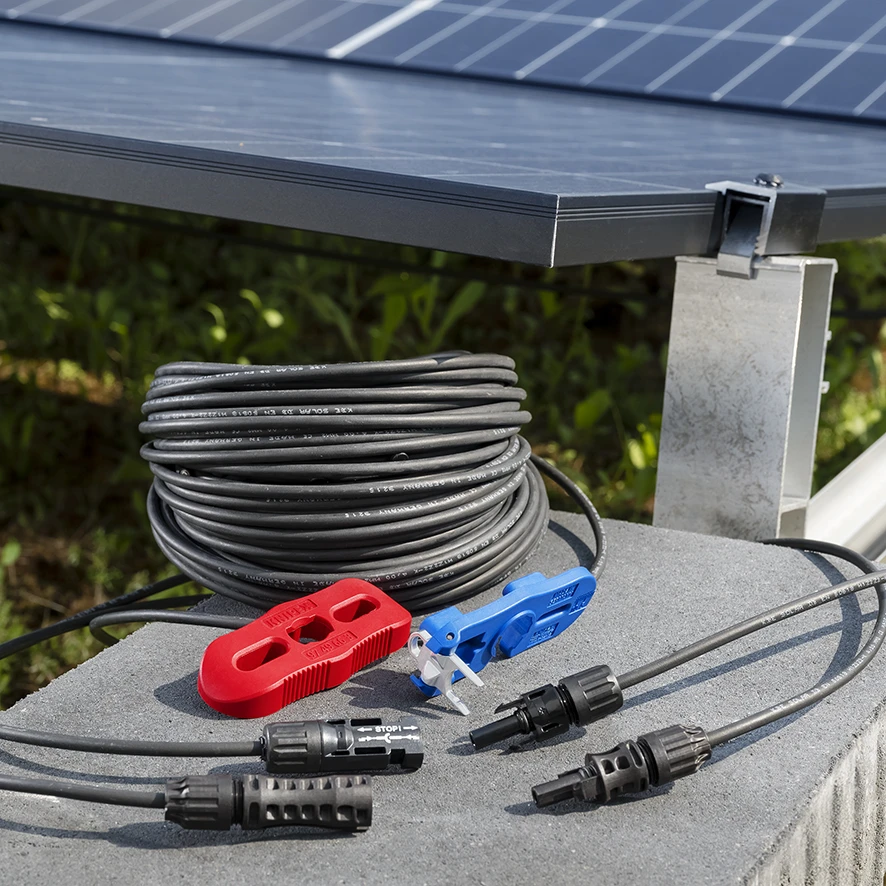

These tools were specifically designed for use with MC4® connectors in photovoltaic systems. They facilitate day-to-day work on solar panel installations, both during the installation of new systems and during subsequent maintenance and diagnostics.

Thanks to its well-thought-out design, the kit is ideal for use in challenging working conditions—on roofs, ground-mounted structures, and in industrial installations.

A well-thought-out and compact design

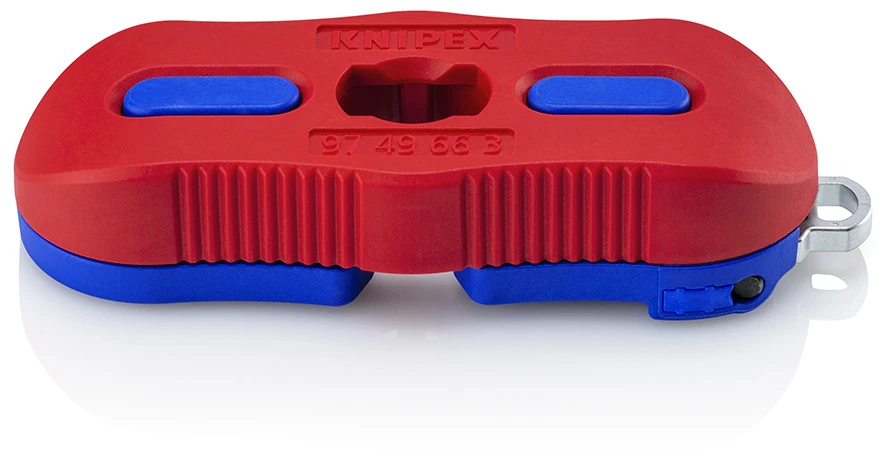

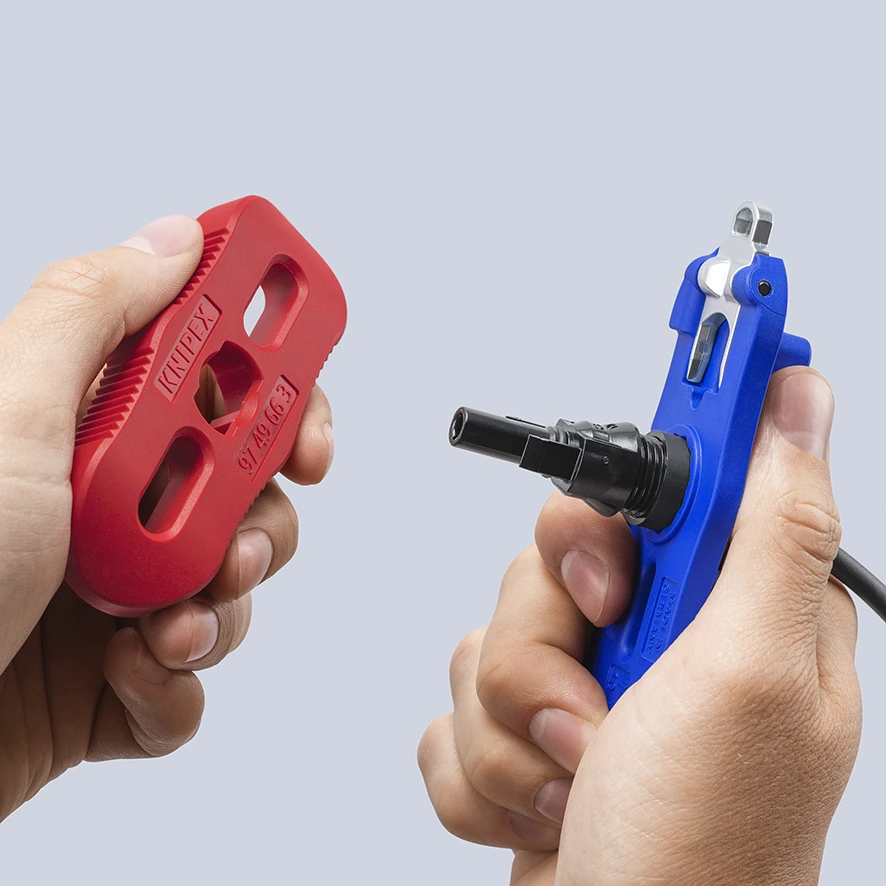

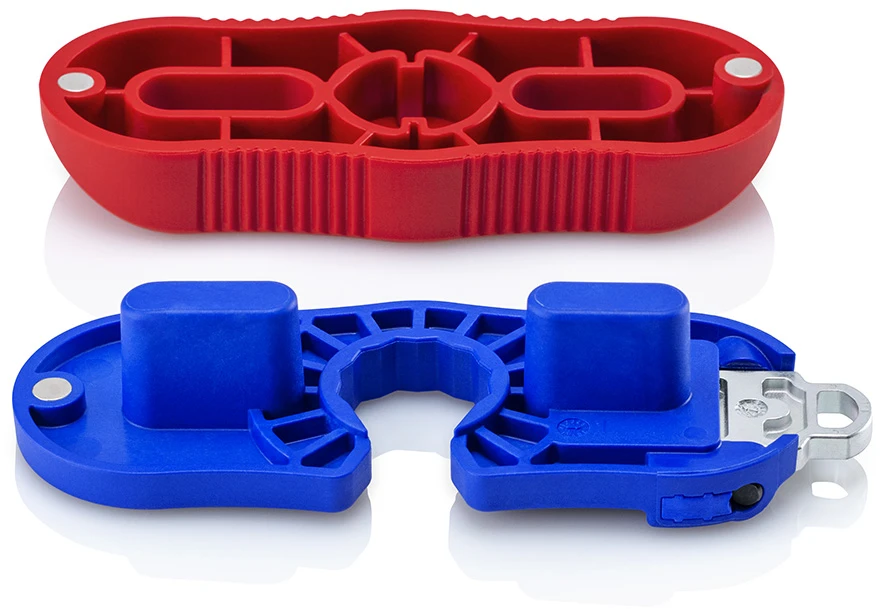

The set consists of two components that can be connected and disconnected as needed. The use of built-in magnets allows for a secure connection between the parts without the need for screws, clamps, or additional mounting hardware.

This solution:

facilitates transport and storage,
prevents the components from accidentally separating,
allows for quick preparation of the tool for use,
and increases comfort when using the tool in the field.

High durability and resistance

The tool body is made of high-quality glass-fiber-reinforced plastic. As a result, the set is highly resistant to mechanical damage, wear and tear, and the operating conditions typical of outdoor installations.

Its lightweight design (66 g) ensures that the tool does not add unnecessary weight to the installer’s equipment, while maintaining high durability and functionality.

Ergonomics and Ease of Use

The tool is designed to ensure maximum comfort while working. The easy connection and disconnection of components allows you to quickly adapt the set to your current needs. Its ergonomic design makes it easy to use the tool even in confined workspaces.

Key Product Benefits

• Designed for MC4® and MC4® Evo 2 connectors
  Specifically designed for photovoltaic (PV) installations
  enables installation, maintenance, and servicing of connectors

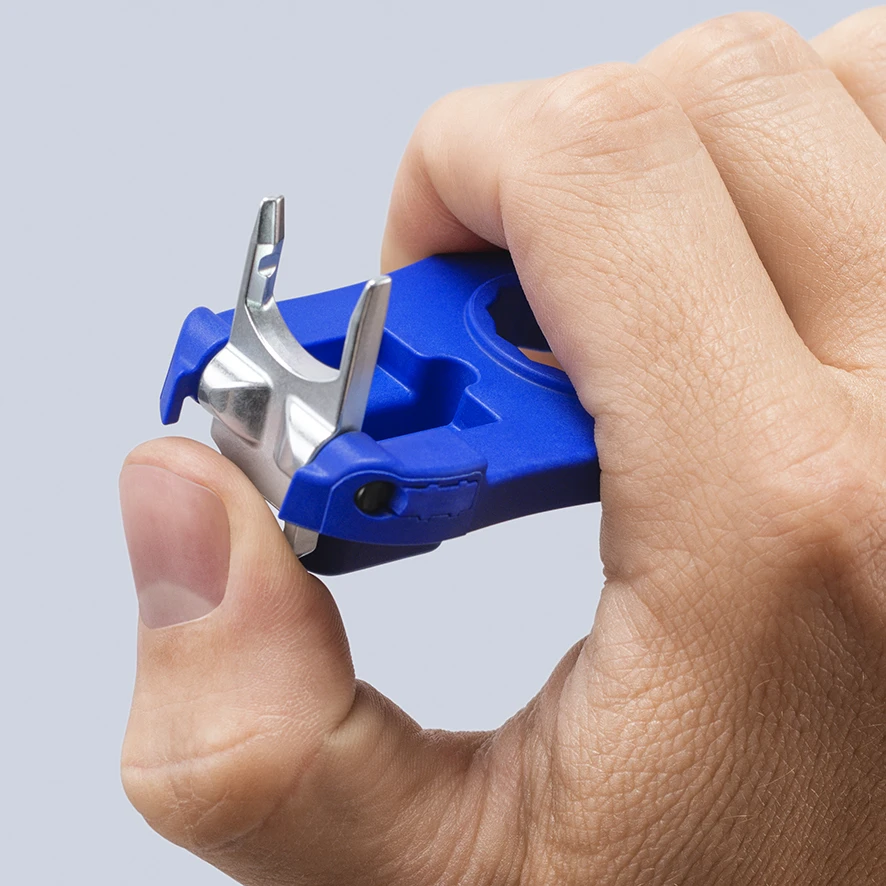

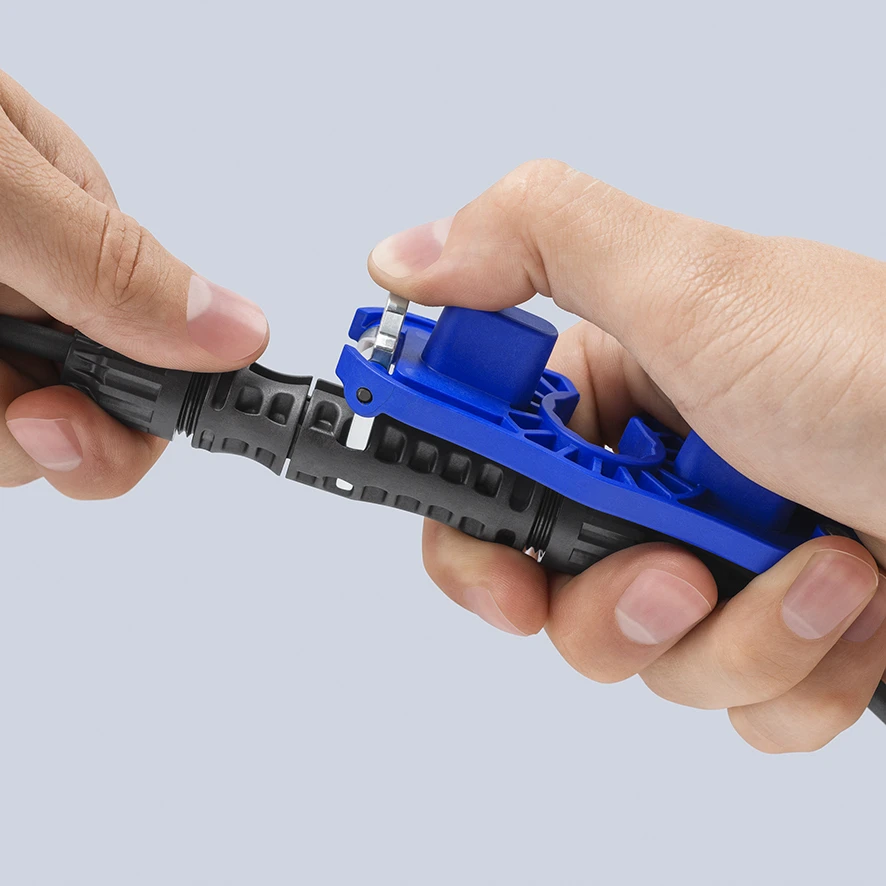

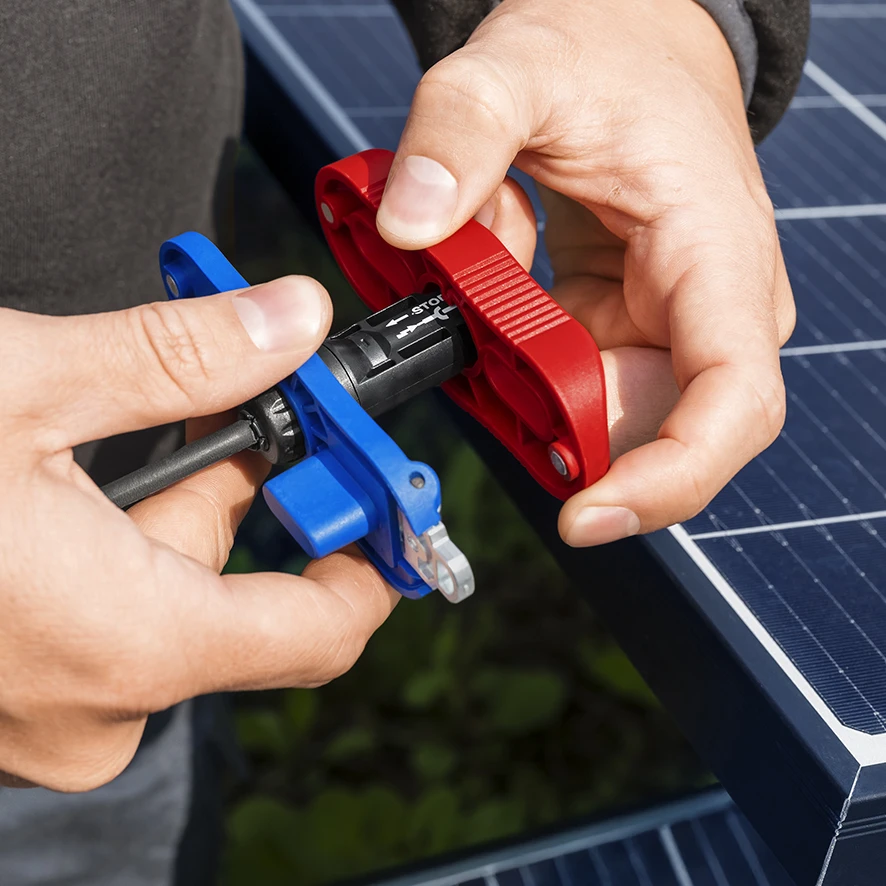

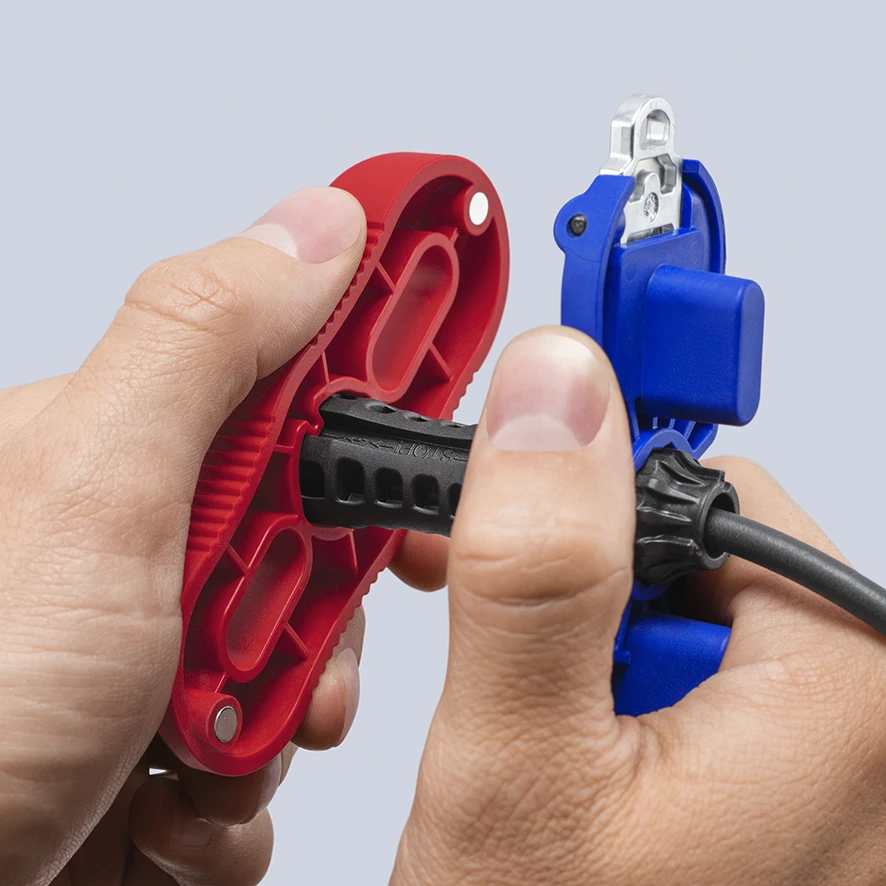

  features a tightening and unlocking function for connectors
  compact design for easy transport
  built-in magnets to stabilize the connection between components
  quick connection and disconnection without additional tools
  durable glass-fiber-reinforced plastic
  lightweight design—only 66 g

Technical Specifications

• Item Number: 97 49 66 3
  EAN: 4003773093787
  Weight: 66 g
  Dimensions: 107 x 50 x 35 mm
  REACH Compliance: Does not contain SVHCs
  RoHS Compliance: Not applicable
